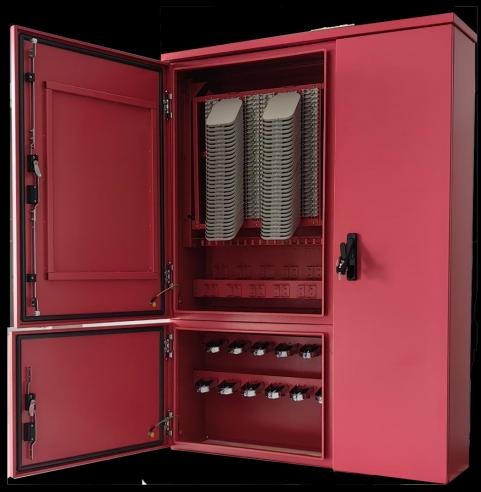

Optical Cross Connecting Cabinet — Air Blown Cable
The air-blown cable version of the Optical Cross Connecting Cabinet is designed for fiber optic access networks where feeder and wiring cables are deployed as air-blown microcables. The cabinet integrates microtube fixation, high-capacity fusion splice trays and residual cable coiling in a single outdoor enclosure.
Features & Characteristics
- ▪Constructed from aluminum alloy and stainless steel SUS304 — flame retardant, waterproof, durable and corrosion resistant.
- ▪High-density splice tray design with a high number of fusion cores and reasonable alignment.
- ▪Functional layered design with dedicated remaining cable coil storage, air-blow microtube fixing area and fiber optic cable splicing zone.
- ▪Customizable capacity — supports 256 cores and above with on-demand cabinet sizing.
Applications
- ▪Air-blown microcable access networks and FTTx deployments.
- ▪Outdoor cross-connection points combining microtube fixation and fusion splicing.
- ▪Sites requiring integrated storage of residual air-blown cable.
Technical specifications
- Material
- Aluminum alloy, stainless steel SUS304
- IP level
- IP55
- Shock rating
- IK10
- Flame rating
- UL94-V0
- Number of fused cores
- ≥ 256C (customization)
- Insert loss
- ≤ 0.5 dB
- Return loss
- ≥ 50 dB
- Dimensions
- Support on-demand customization
