FTTx / ODN Solutions

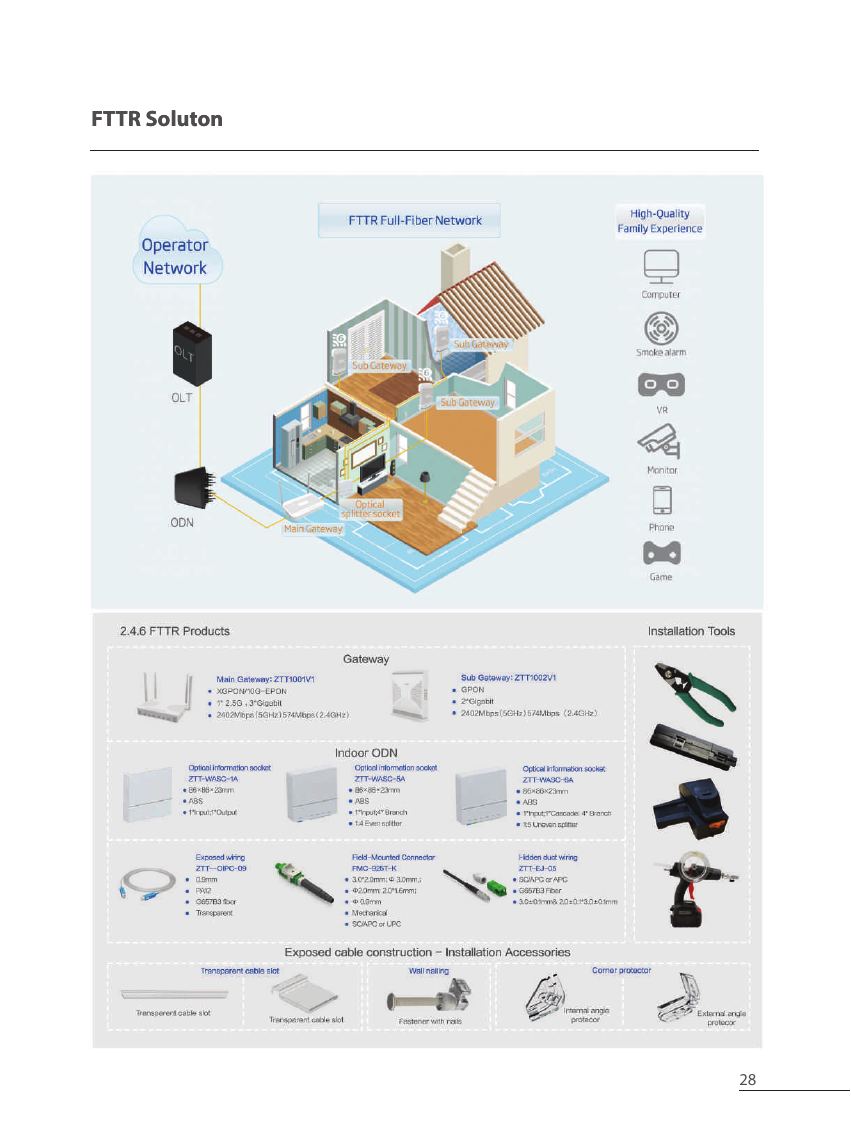

FTTR Solution
Fiber-To-The-Room in-home network with a main gateway, sub-gateways, optical information sockets and field-mounted connectors. Delivers all-optical Wi-Fi coverage across residences.
Features & Characteristics
- ▪Main Gateway ZTT1001V1: XG-PON/10G-EPON, 1×2.5G + 3× Gigabit, 2402 Mbps (5 GHz) / 574 Mbps (2.4 GHz)
- ▪Sub Gateway ZTT1002V1: GPON, 2× Gigabit, 2402/574 Mbps
- ▪Optical information sockets ZTT-WASC-1A / 5A / 6A (with 1:4 or 1:5 splitters)
- ▪Exposed wiring ZTT-OIPC-09 (0.9 mm PA12, G.657B3 transparent)
- ▪Field-mounted connector FMC-925T-K (SC/APC or UPC, mechanical)
- ▪Hidden-duct wiring ZTT-EJ-05
- ▪Installation tools and exposed-cable accessories included
Applications
- ▪In-home all-optical Wi-Fi coverage
