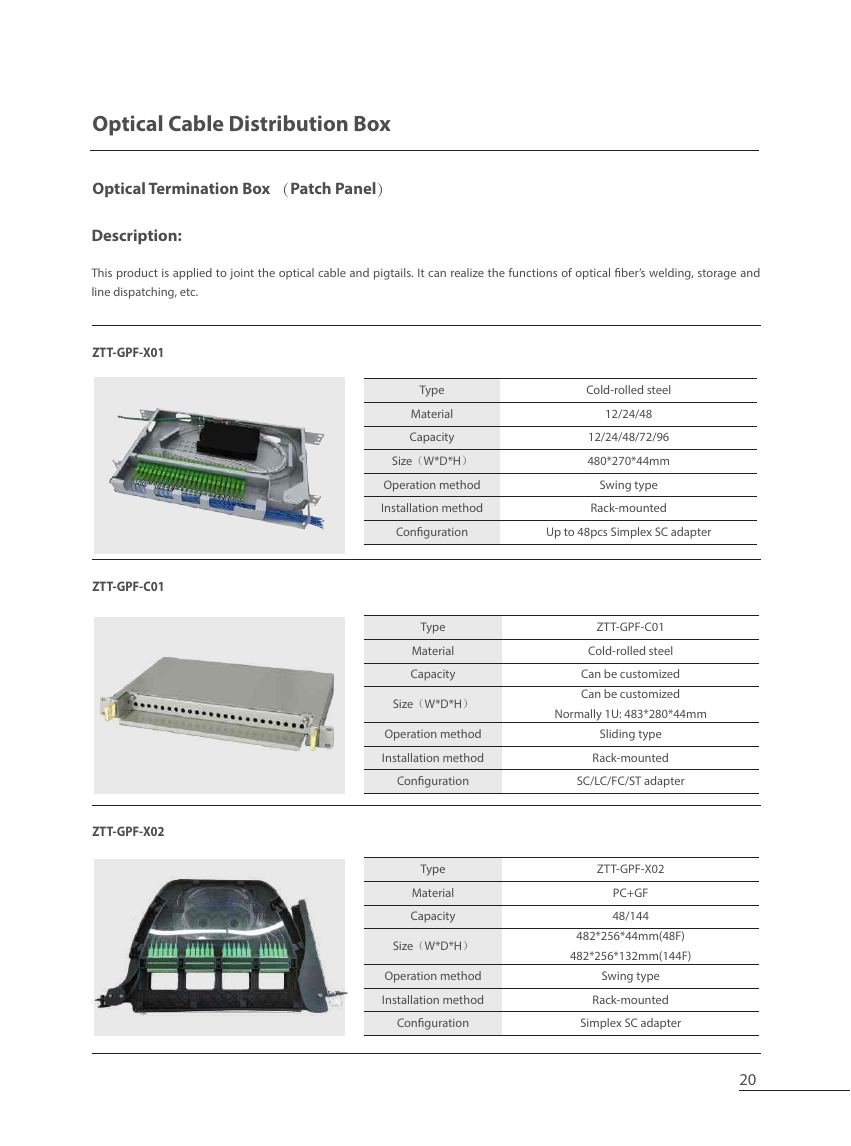

Optical Termination Box (Patch Panel)
1U/2U rack-mounted patch panels for optical fiber welding, storage and line dispatching. Swing- or sliding-tray operation with up to 48 simplex SC adapters per module.
Features & Characteristics
- ▪Joints optical cable with pigtails
- ▪Realizes welding, storage and line dispatching
- ▪Swing-type or sliding-type operation
- ▪Up to 48/144 fibers per module (X02)
Applications
- ▪ODF integration in central office / data center
Typical Specifications
- ZTT-GPF-X01
- Cold-rolled steel, 12/24/48 core, swing, 480×270×44 mm
- ZTT-GPF-C01
- Customizable, sliding-type, typically 1U 483×280×44 mm
- ZTT-GPF-X02
- PC+GF, 48/144 core, swing
