FTTx / ODN Solutions

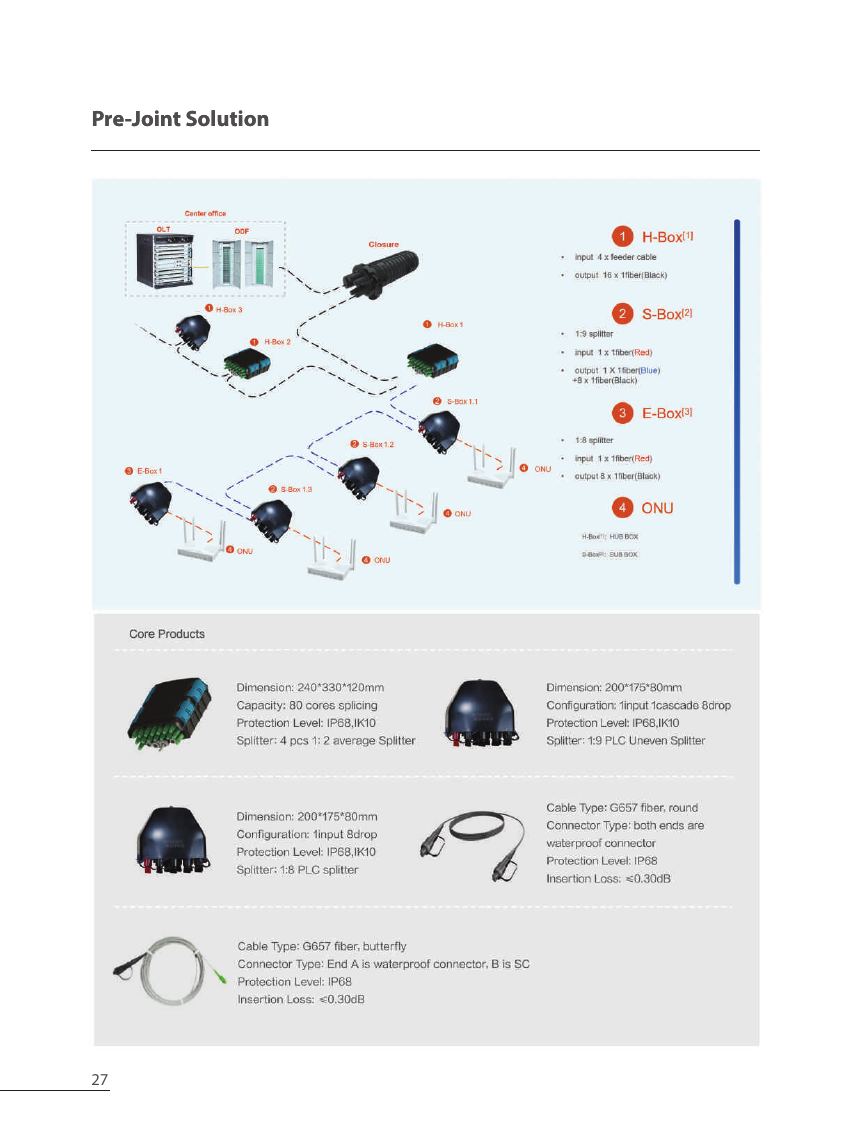

Pre-Joint Solution
Factory pre-connectorized ODN topology built around H-Box, S-Box and E-Box modules with IP68 waterproof connectors. Enables rapid, plug-and-play deployment from OLT to ONU.
Features & Characteristics
- ▪H-Box: 4 feeder inputs, 16 outputs, 80-core splice, IP68/IK10, 4× 1:2 splitter
- ▪S-Box: 1 input, 1 cascade, 8 drops, IP68/IK10, 1:9 uneven splitter
- ▪E-Box: 1 input, 8 drops, IP68/IK10, 1:8 PLC splitter
- ▪G.657 fiber pre-connectorized cables (round or butterfly), IP68 waterproof
- ▪Insertion loss ≤ 0.30 dB
Applications
- ▪Plug-and-play PON rollout from center office to ONU
