HCAAY(Z) 50-12 (1/2″) RF Coaxial Cable
50 Ω 1/2″ corrugated copper-tube RF coaxial cable with foam PE dielectric. Standard base-station feeder used up to 3 GHz with peak power rating of 40 kW.
Telecom Cables
RF Coaxial Cables
50 Ω corrugated copper / aluminum tube and super-flexible RF coaxial feeder cables for mobile communication base stations, in 1/4″, 1/2″, 7/8″, 1-1/4″ and 1-5/8″ sizes.
Products
HCAAY(Z) 50-12C (1/2″) RF Coaxial Cable
50 Ω 1/2″ high-VSWR variant of the HCAAY 50-12 feeder with extended VSWR specification across cellular and mid-band frequencies. Provides the same peak-power capacity and mechanical envelope as the standard 1/2″ cable.

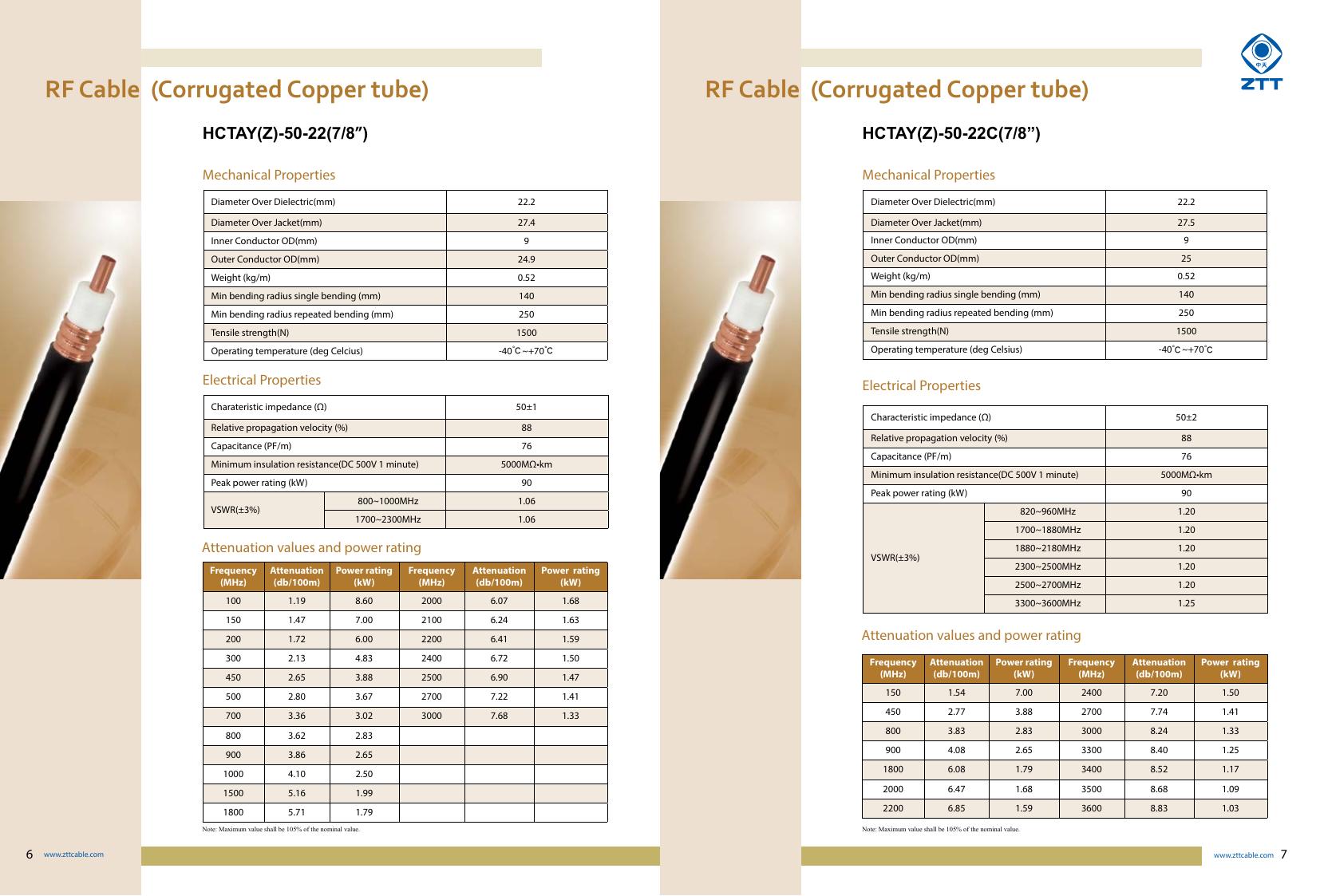

HCTAY(Z) 50-22 (7/8″) RF Coaxial Cable
50 Ω 7/8″ corrugated copper-tube RF feeder engineered for medium-power base-station applications. Delivers lower attenuation and higher power rating than 1/2″ cable across the full cellular band.
HCTAY(Z) 50-22C (7/8″) RF Coaxial Cable
50 Ω 7/8″ enhanced-VSWR variant of the HCTAY 50-22, matched to demanding 4G/5G multi-band feeder requirements. Retains the same mechanical envelope and power capacity as the standard 7/8″ cable.

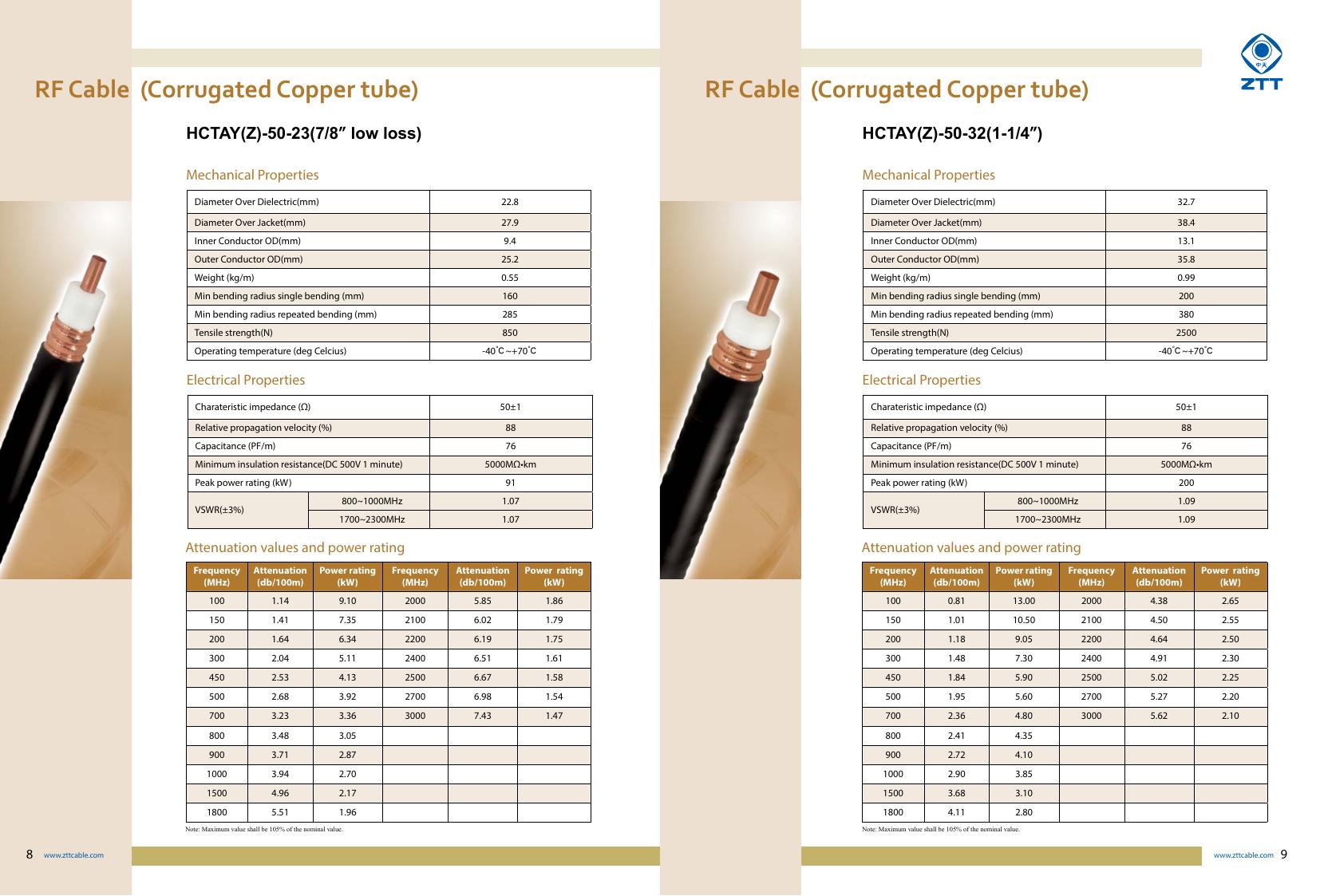

HCTAY(Z) 50-23 (7/8″ low loss) RF Coaxial Cable
50 Ω 7/8″ low-loss corrugated copper-tube feeder cable optimised for long feeder runs. Delivers ~30 % lower attenuation than the standard 7/8″ cable at the same physical size.
HCTAY(Z) 50-32 (1-1/4″) RF Coaxial Cable
50 Ω 1-1/4″ corrugated copper-tube RF coaxial feeder for high-power and long-distance base-station installations. Combines low attenuation with substantial peak power handling.

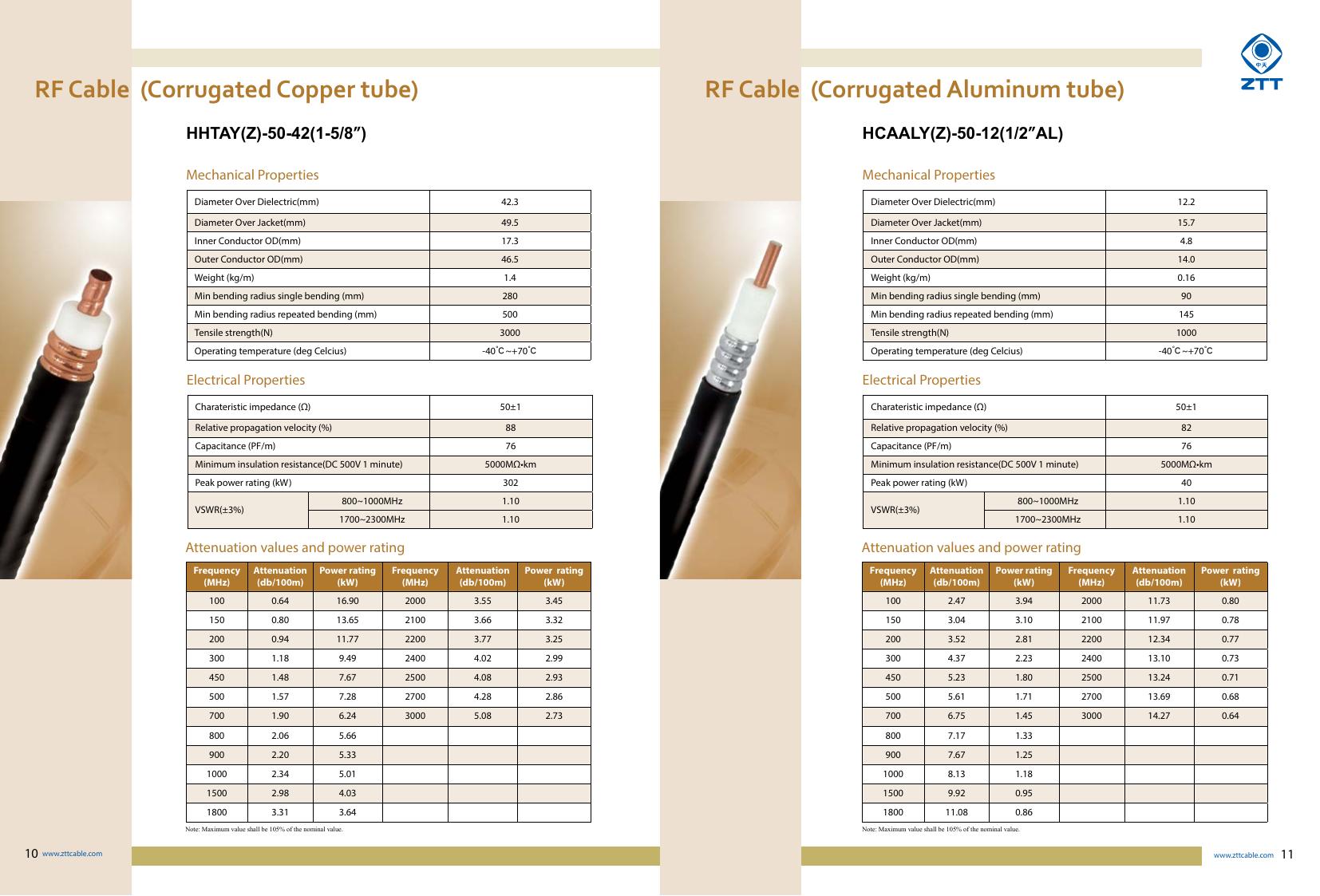

HHTAY(Z) 50-42 (1-5/8″) RF Coaxial Cable
50 Ω 1-5/8″ corrugated copper-tube feeder for the highest power and lowest attenuation trunk applications. Delivers 302 kW peak-power handling for backbone RF distribution.
HCAALY(Z) 50-12 (1/2″ AL) RF Coaxial Cable
50 Ω 1/2″ corrugated aluminum-tube RF coaxial cable providing a lower-weight, more cost-effective alternative to the copper-tube 1/2″ feeder. Same peak-power rating with 33 % lower cable weight.
HCTALY(Z) 50-22 (7/8″ AL) RF Coaxial Cable
50 Ω 7/8″ aluminum-tube RF feeder cable offering the low-attenuation performance of the 7/8″ platform at reduced weight. Ideal where tower loading and cost per meter are critical.
HCTALY(Z) 50-23 (7/8″ AL low loss) RF Coaxial Cable
50 Ω 7/8″ low-loss aluminum-tube variant delivering reduced attenuation for long feeder runs at lower weight than copper-tube equivalents. Aimed at large deployments where installed weight matters.
HCTALY(Z) 50-32 (1-1/4″ AL) RF Coaxial Cable
50 Ω 1-1/4″ aluminum-tube coaxial feeder for high-power trunk feeder use where reduced weight matters. Retains the low-attenuation profile of the copper 1-1/4″ cable.
HRY(Z) 50-5 (1/4″ Super Flexible) RF Coaxial Cable
50 Ω 1/4″ super-flexible RF coaxial cable used for antenna jumpers and short pigtails between corrugated feeders and radios. Small bending radius suits tight installations inside cabinets and radio ports.

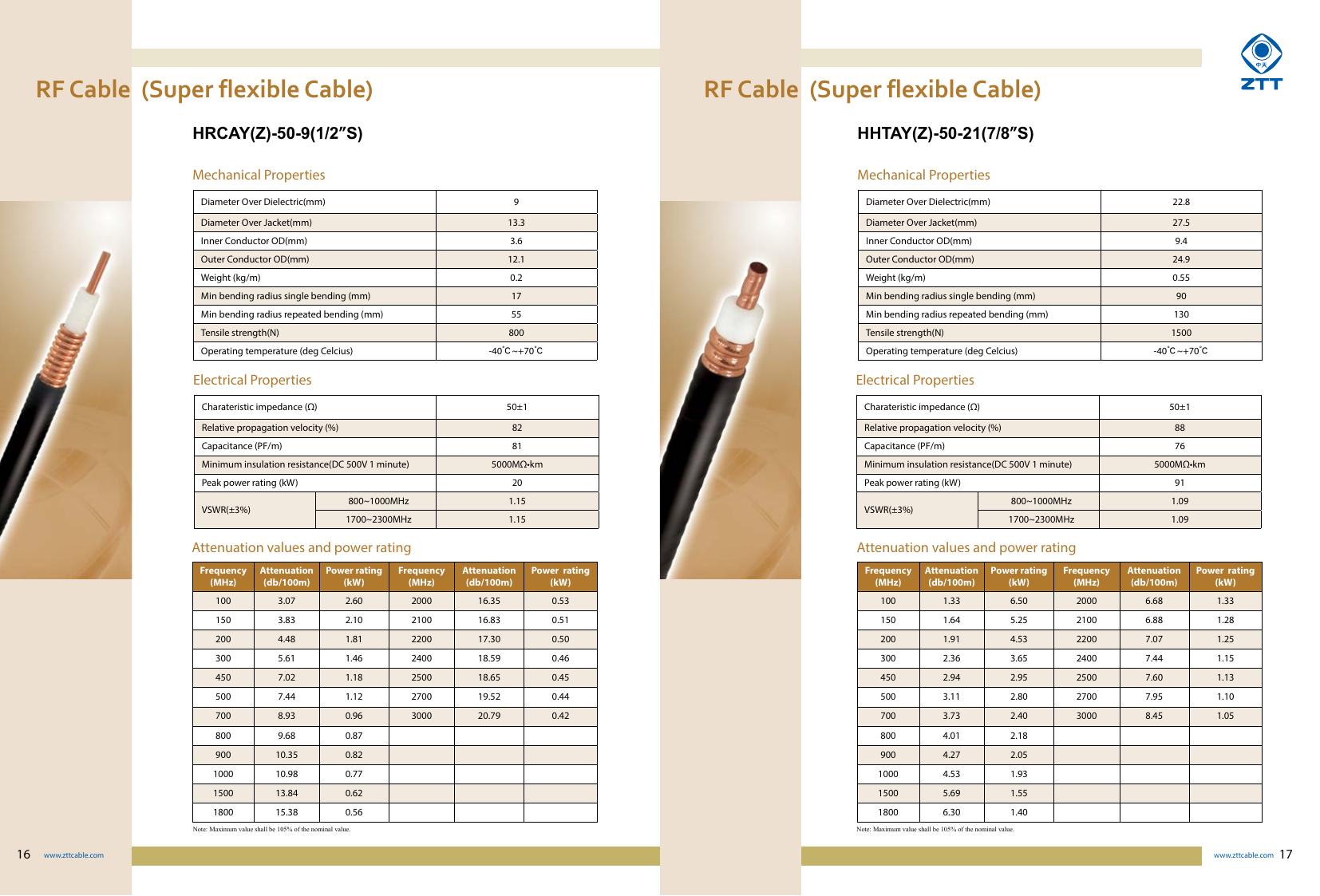

HRCAY(Z) 50-9 (1/2″ Super Flexible) RF Coaxial Cable
50 Ω 1/2″ super-flexible RF cable used for medium-length jumpers where a corrugated cable would be too stiff. Combines the electrical footprint of a 1/2″ feeder with flexibility for tight routing.
HHTAY(Z) 50-21 (7/8″ Super Flexible) RF Coaxial Cable
50 Ω 7/8″ super-flexible RF cable for longer high-power jumpers on cellular towers. Bridges the gap between rigid corrugated feeders and short braided pigtails.

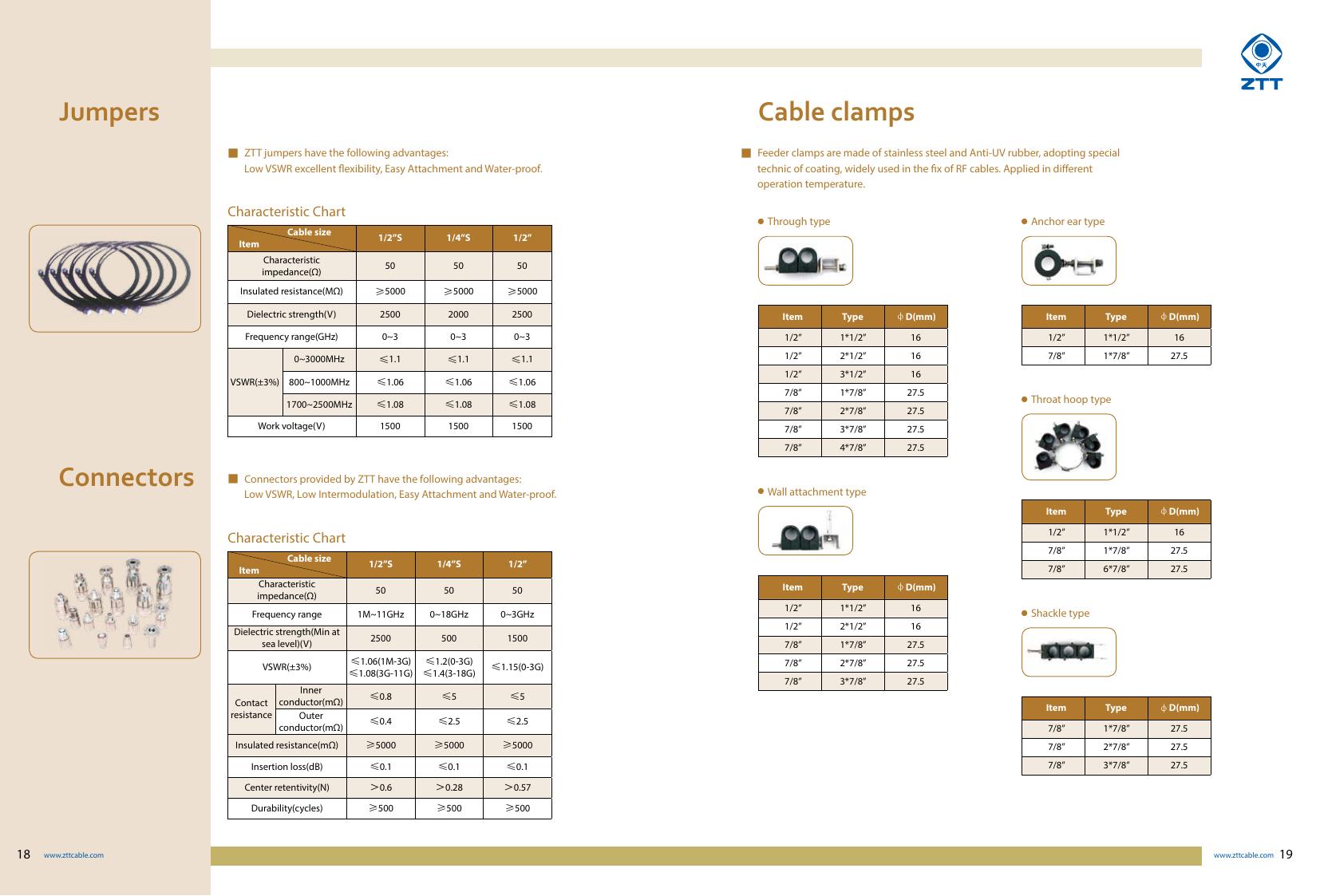

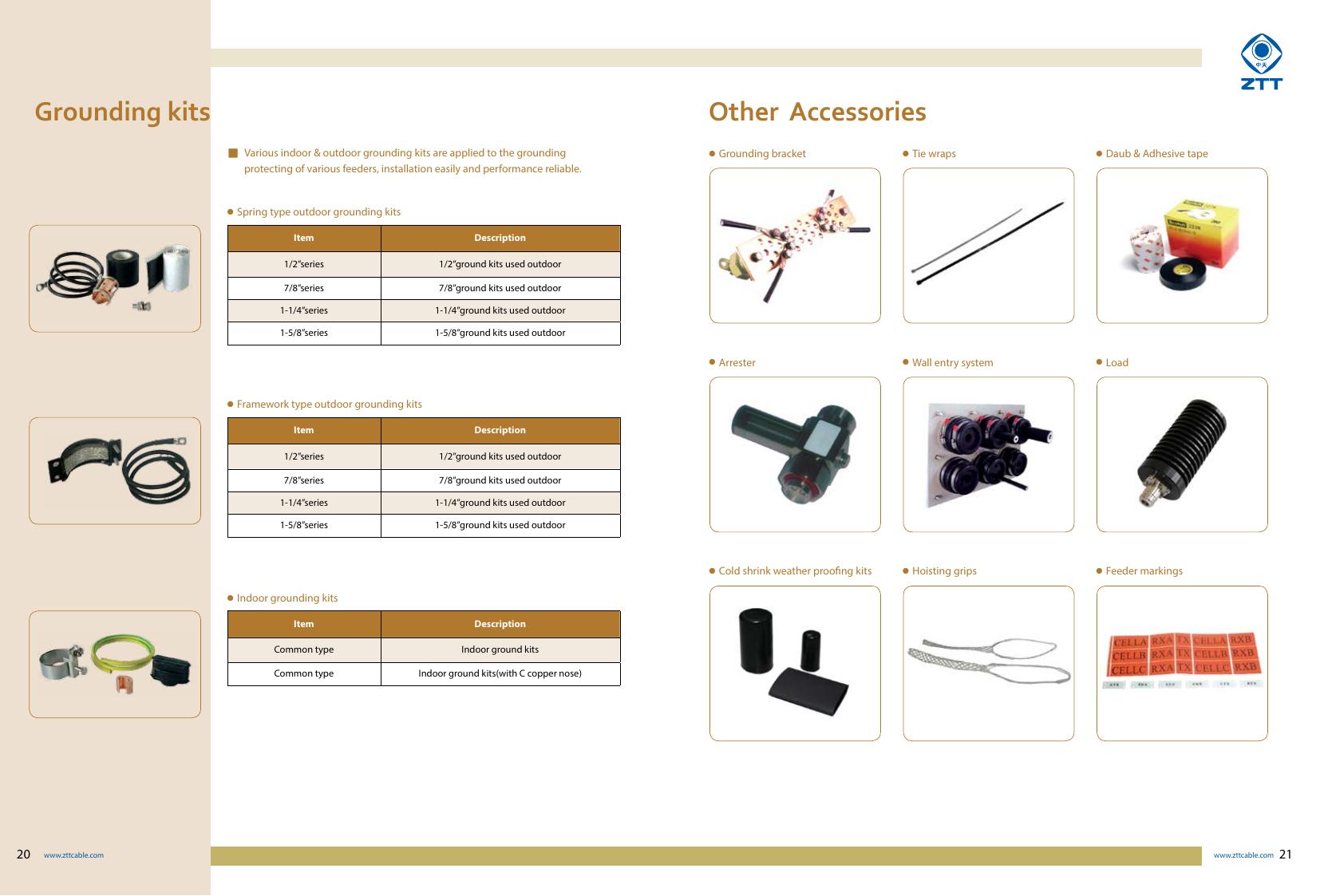

RF Coaxial Cable Accessories
Complete range of RF coaxial cable accessories including connectors, grounding kits, hoisting grips, arresters, cold-shrink kits, cable ties and feeder markers. Supplied as a matched system with the corrugated and super-flexible feeder cables.
Need a specification we don't list?
We source technical products on request. Send us your specification sheet and we will respond with sourcing options and lead times.
