Optical Fiber Cables
ADSS Cable
All-Dielectric Self-Supporting aerial cable for deployment along power distribution and transmission lines. Fully dielectric construction eliminates induced-current risks on high-voltage crossings, with spans up to 1500 m.
Features & Characteristics
- ▪Mainly installed on existing 220 kV or lower voltage power lines
- ▪Layer or central tube design
- ▪Aramid yarn (Du Pont) as strength member for tensile performance
- ▪PE or Tracking-resistant PE outer sheath (>12 kV space potential)
- ▪Stranded-layer ADSS: max fiber count 312
- ▪Stranded-layer ADSS: max span up to 1500 m
Applications
- ▪High-voltage overhead power line routes
- ▪Long-span aerial telecom backbones

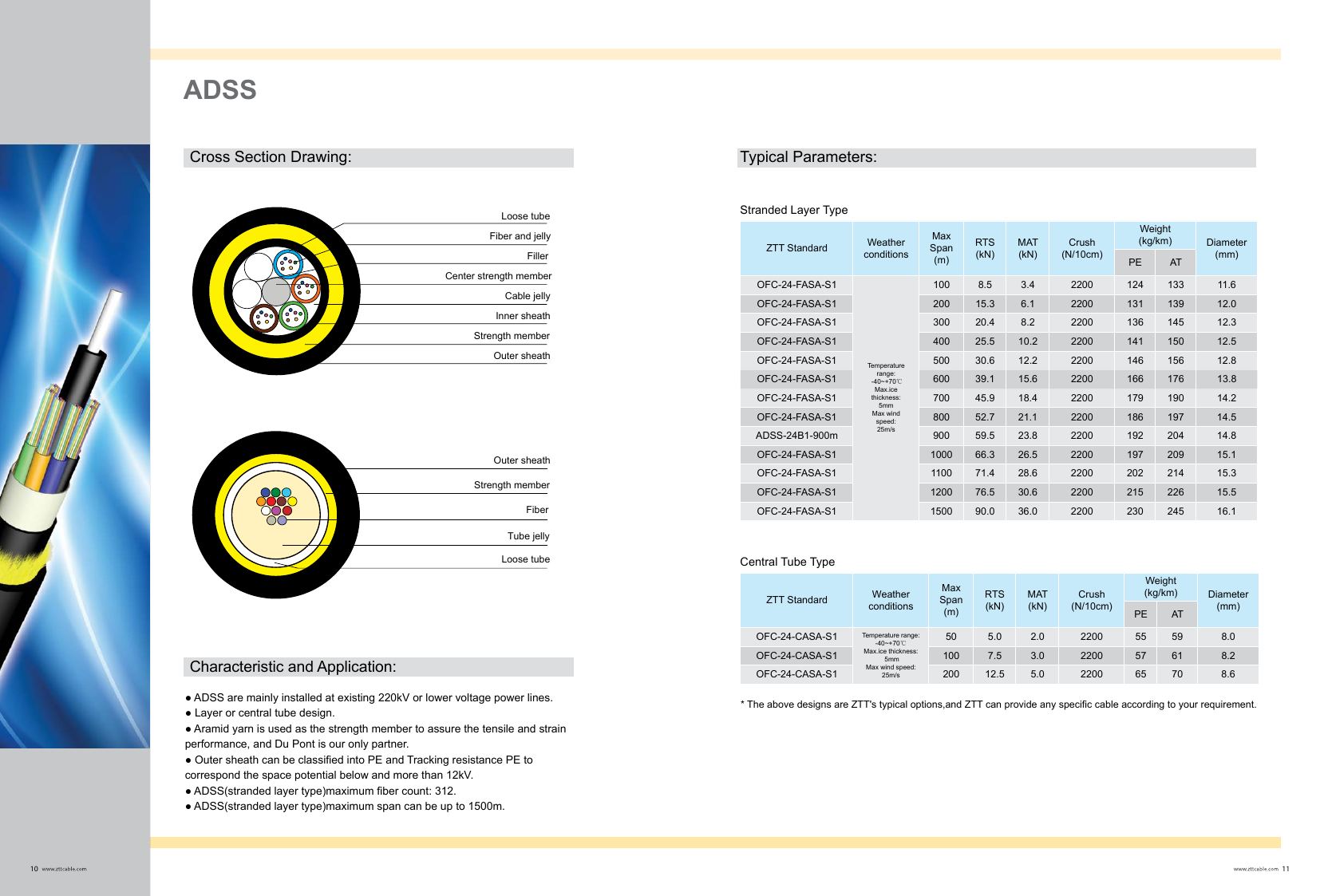

Typical Specifications
- Reference type
- OFC-24-FASA-S1
- Max span
- up to 1500 m
- Weather (typ.)
- -40 to +70 °C, 5 mm ice, 25 m/s wind
- RTS @ 1000 m span
- 66.3 kN
- Diameter @ 1000 m span
- 15.1 mm
