Optical Fiber Cables

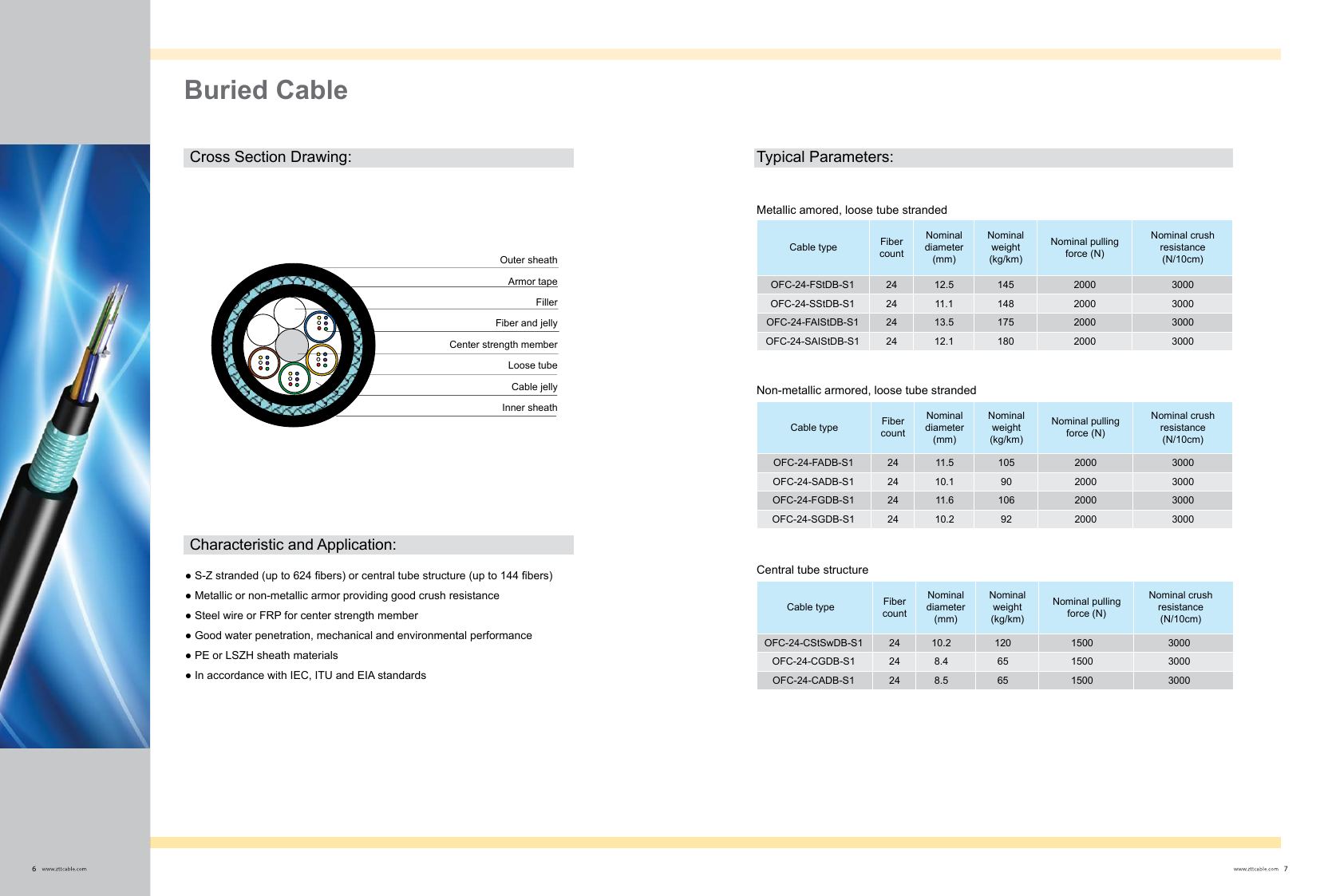

Buried Cable
Armored optical cable engineered for direct burial with reinforced mechanical protection. Withstands ground stress, moisture ingress, and physical impact in outside plant environments.
Features & Characteristics
- ▪S-Z stranded (up to 624 fibers) or central tube structure (up to 144 fibers)
- ▪Metallic or non-metallic armor providing good crush resistance
- ▪Steel wire or FRP for center strength member
- ▪Good water penetration, mechanical and environmental performance
- ▪PE or LSZH sheath materials
- ▪In accordance with IEC, ITU and EIA standards
Applications
- ▪Direct-buried outside plant routes
- ▪Rural, urban and industrial fiber backbones
Typical Specifications
- Reference type
- OFC-24-FStDB-S1
- Fiber count (typ.)
- 24
- Nominal diameter
- 12.5 mm
- Nominal weight
- 145 kg/km
- Nominal pulling force
- 2000 N
- Crush resistance
- 3000 N/10 cm
