Optical Fiber Cables

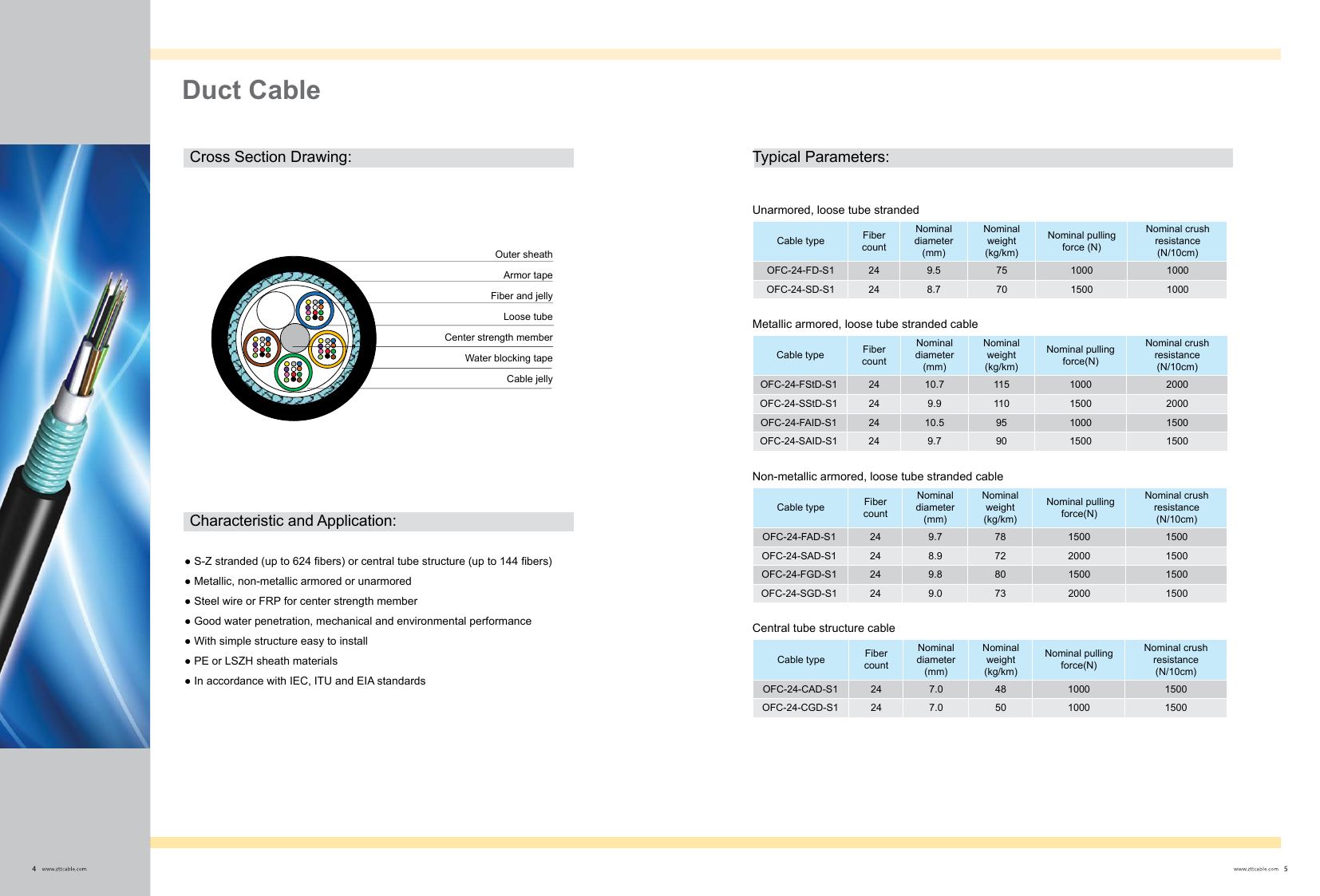

Duct Cable
Loose-tube or central-tube optical cable for installation into pre-installed ducts and conduits, up to 624 fibers. Metallic, non-metallic armored or unarmored constructions with excellent water penetration and mechanical performance.
Features & Characteristics
- ▪S-Z stranded (up to 624 fibers) or central tube structure (up to 144 fibers)
- ▪Metallic, non-metallic armored or unarmored
- ▪Steel wire or FRP for center strength member
- ▪Good water penetration, mechanical and environmental performance
- ▪Simple structure, easy to install
- ▪PE or LSZH sheath materials
- ▪In accordance with IEC, ITU and EIA standards
Applications
- ▪Metro and long-haul duct routes
- ▪Backbone deployments using pulling or blowing
Typical Specifications
- Reference type
- OFC-24-FStD-S1
- Fiber count (typ.)
- 24
- Nominal diameter
- 10.7 mm
- Nominal weight
- 115 kg/km
- Nominal pulling force
- 1000 N
- Crush resistance
- 2000 N/10 cm
