Optical Fiber Cables

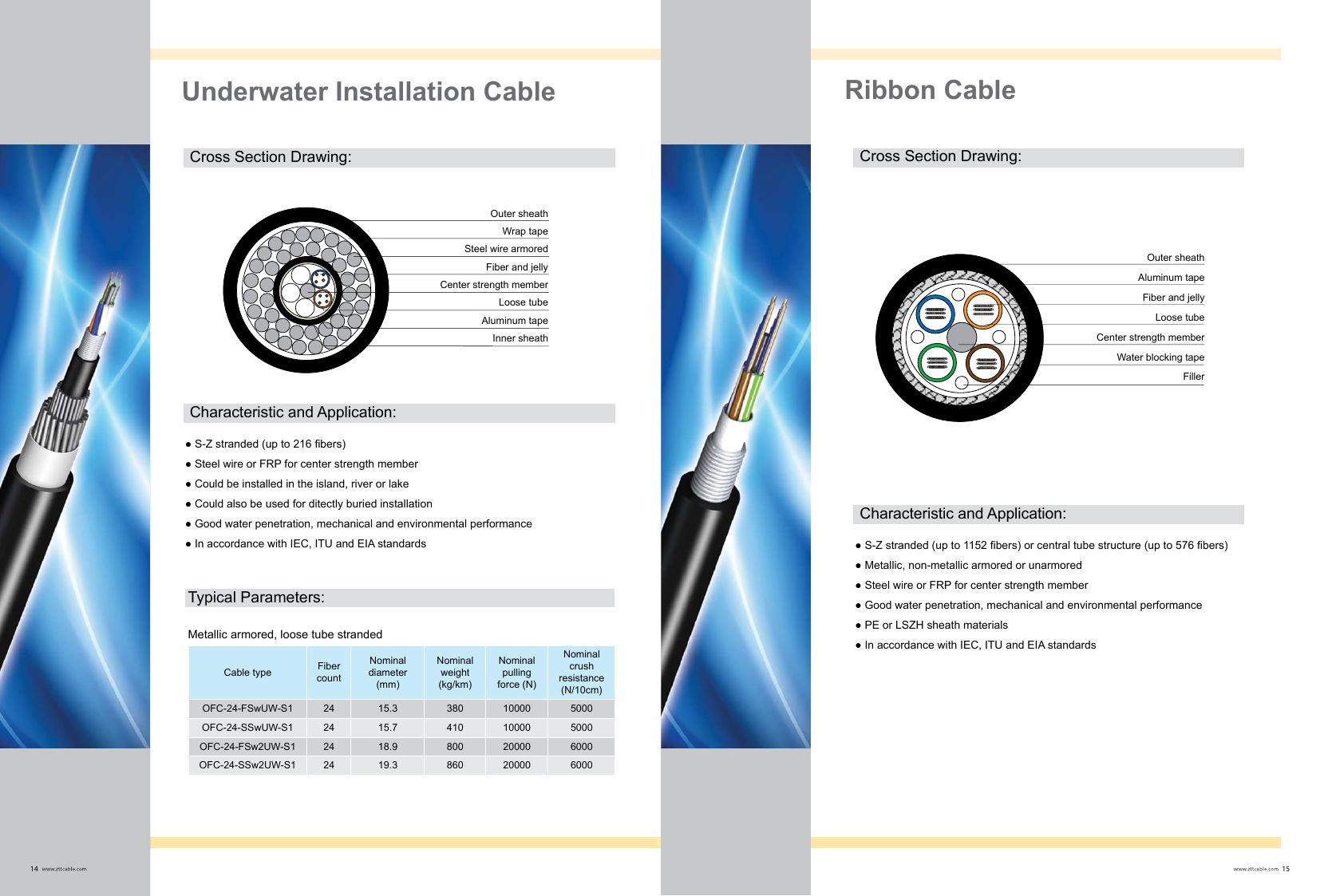

Underwater Cable
Steel-wire armored optical cable for submarine, river, lake and inland water crossings, up to 216 fibers. Withstands pressure, water ingress and mechanical stress; also suitable for direct burial.
Features & Characteristics
- ▪S-Z stranded (up to 216 fibers)
- ▪Steel wire or FRP for center strength member
- ▪Installable in islands, rivers, lakes
- ▪Also usable for direct buried installation
- ▪Good water penetration, mechanical and environmental performance
- ▪In accordance with IEC, ITU and EIA standards
Applications
- ▪Submarine and inland water crossings
- ▪River and lake fiber links
Typical Specifications
- Single-armor (OFC-24-FSwUW-S1)
- Ø 15.3 mm, 380 kg/km, 10 000 N, 5000 N/10cm
- Double-armor (OFC-24-FSw2UW-S1)
- Ø 18.9 mm, 800 kg/km, 20 000 N, 6000 N/10cm
