Optical Fiber Cables
FTTx Cable
Round, ribbon, spiral-steel-wire armored and flat drop cables purpose-built for fiber-to-the-x access networks. Bend-insensitive fiber and PVC/LSZH sheath for indoor and outdoor last-mile deployments.
Features & Characteristics
- ▪Tight buffer fiber or colored fiber
- ▪Aramid yarns, steel wire or FRP for strength member
- ▪Easy for connection between equipments
- ▪Bending-loss insensitive
- ▪PVC or LSZH sheath materials
- ▪Indoor or outdoor installation
- ▪In accordance with IEC, ITU and EIA standards
Applications
- ▪FTTH / FTTB drop and distribution
- ▪Indoor and outdoor access networks

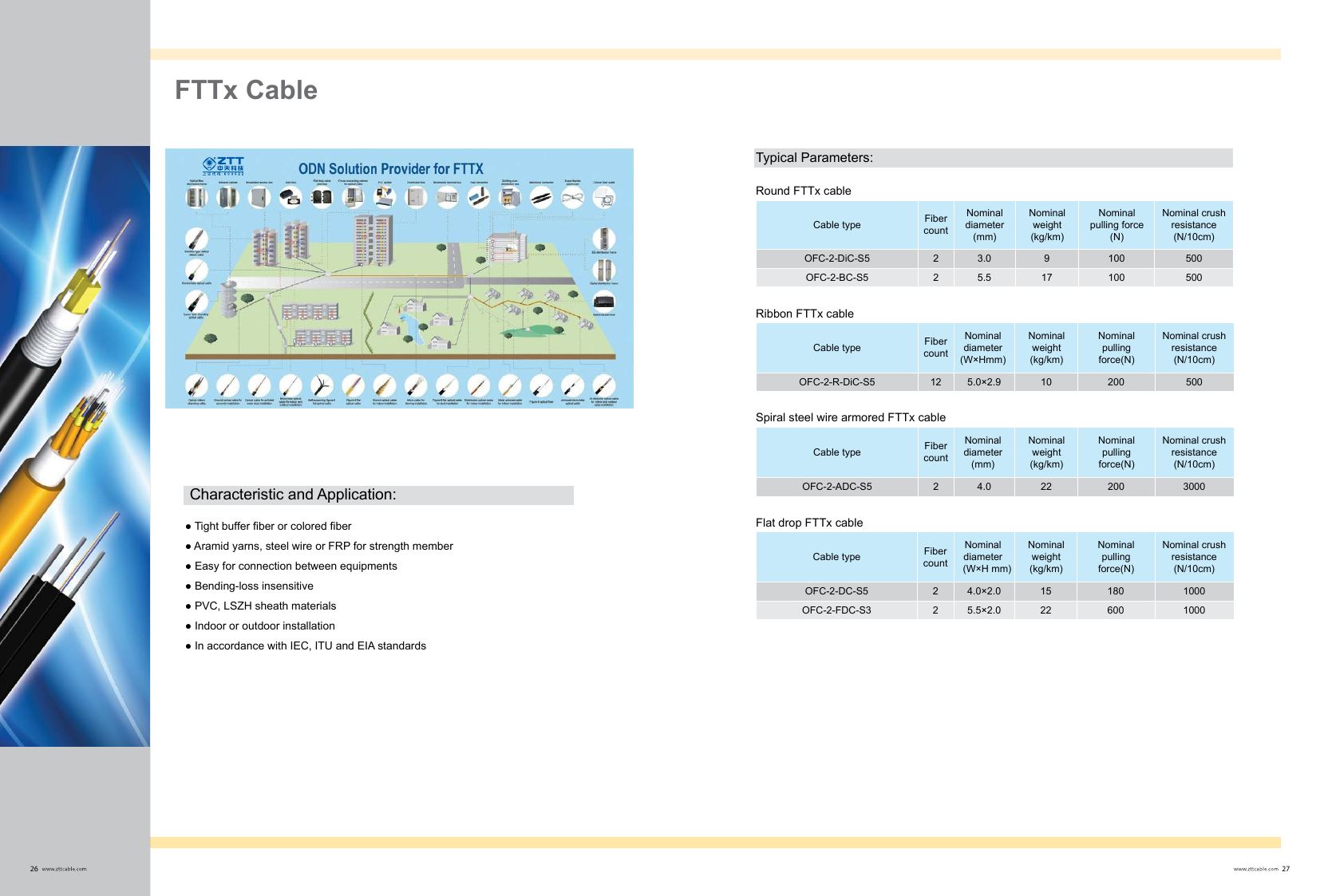

Typical Specifications
- Round FTTx (OFC-2-DIC-S5)
- 2 fibers, Ø 3.0 mm, 9 kg/km
- Ribbon FTTx (OFC-2-R-DIC-S5)
- 12 fibers, 5.0 × 2.9 mm
- Spiral-steel armored (OFC-2-ADC-S5)
- 2 fibers, Ø 4.0 mm, 22 kg/km, 3000 N/10cm
- Flat drop (OFC-2-FDC-S3)
- 2 fibers, 5.5 × 2.0 mm, 22 kg/km
