Optical Fiber Cables

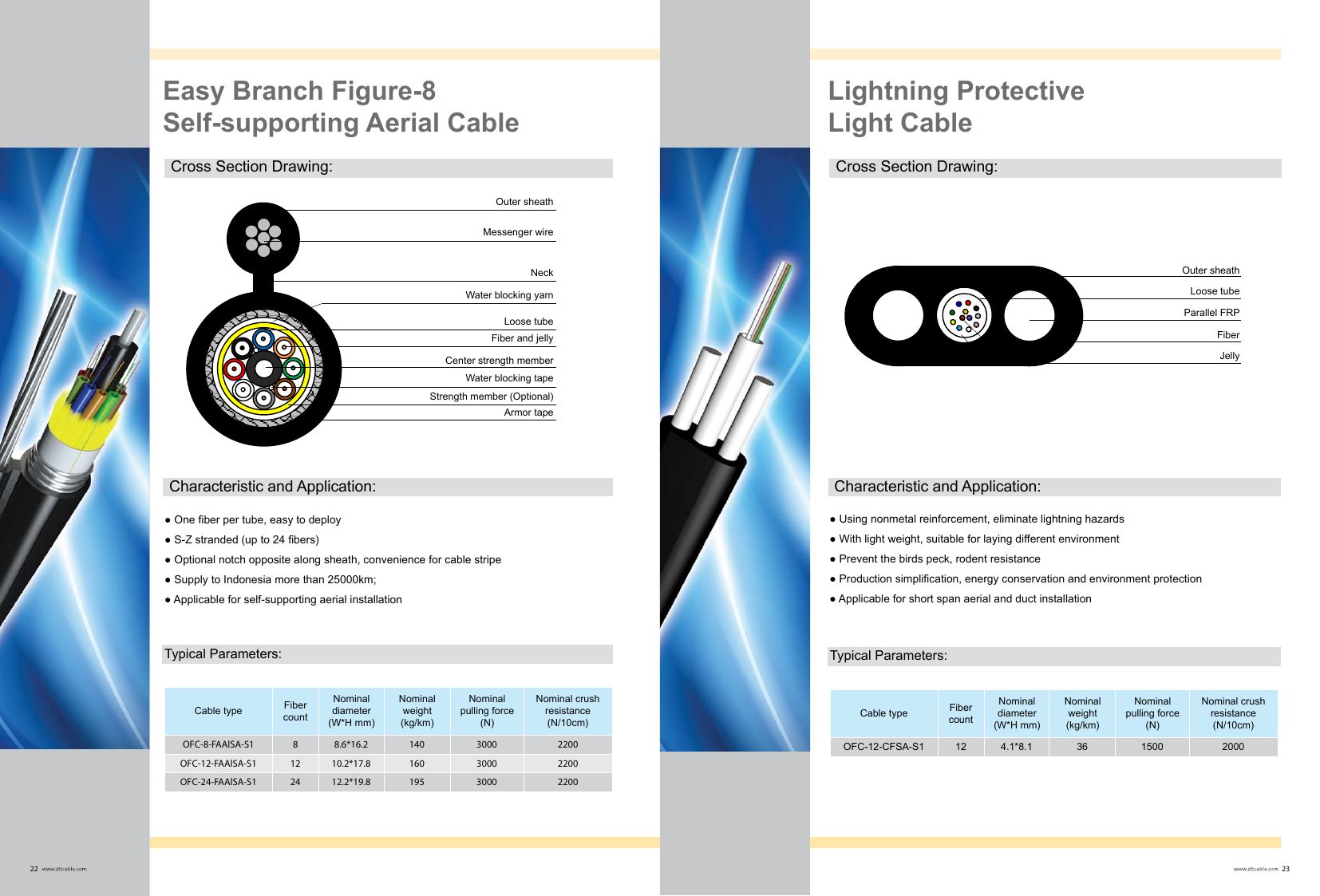

Lightning Protective Light Cable
Lightweight all-dielectric optical cable eliminating lightning hazards. Prevents bird pecking and rodent damage; well suited to short-span aerial and duct installation.
Features & Characteristics
- ▪Nonmetal reinforcement eliminates lightning hazards
- ▪Light weight, suitable for various installation environments
- ▪Prevents bird pecking, rodent resistant
- ▪Simple construction — energy conservation and environmental protection
- ▪Applicable for short-span aerial and duct installation
Applications
- ▪Exposed aerial routes with lightning exposure
- ▪Short-span duct installations
Typical Specifications
- Reference type
- OFC-12-CFSA-S1
- Nominal diameter
- 4.1 × 8.1 mm
- Nominal weight
- 36 kg/km
- Nominal pulling force
- 1500 N
- Crush resistance
- 2000 N/10 cm
