Optical Fiber Cables

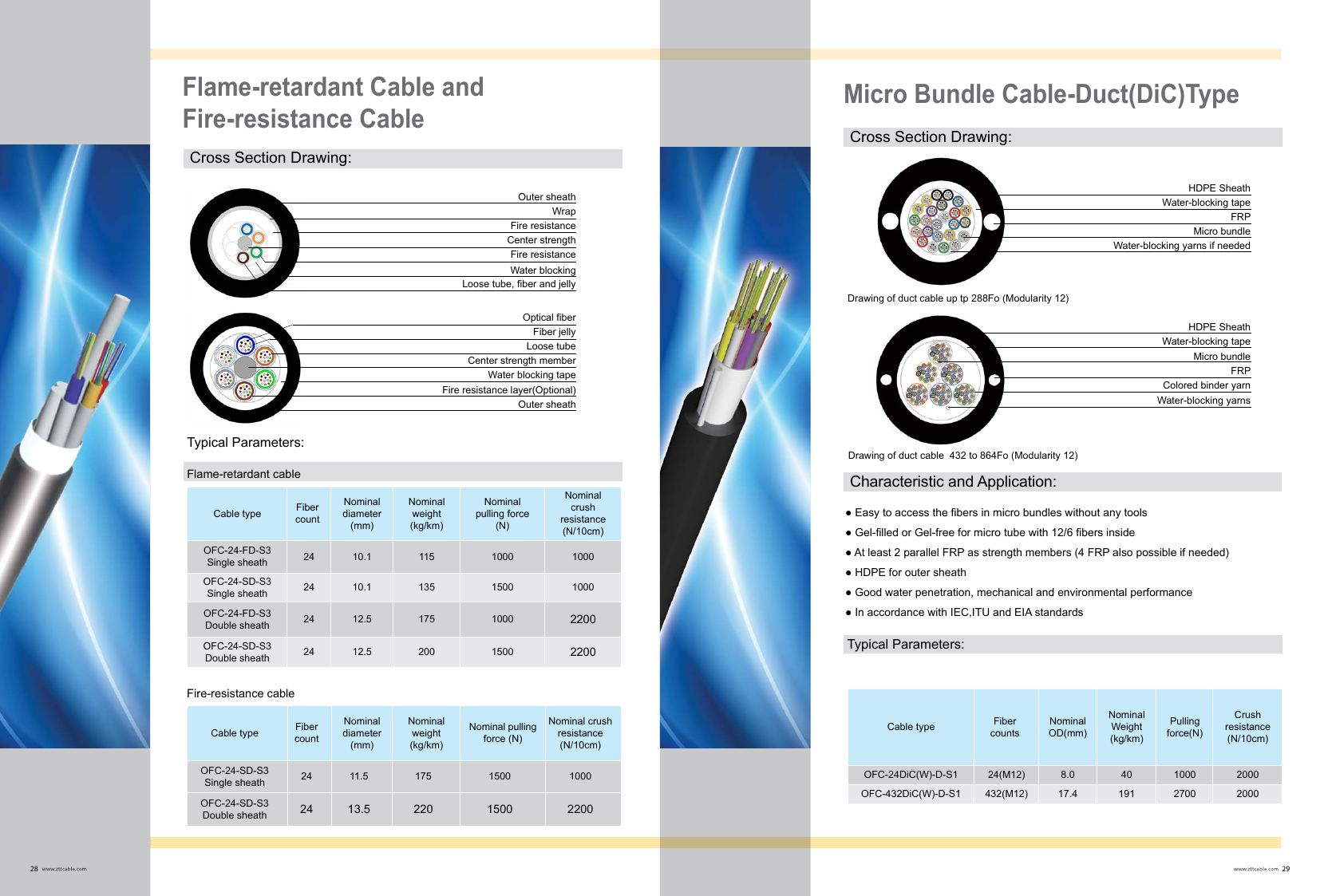

Micro Bundle Cable
High-density cable family bundling 12- or 6-fiber micro modules accessible without tools. Available in Duct (DiC), ADSS (FASA), Indoor Riser and Outdoor/Indoor drop variants covering the full network.
Features & Characteristics
- ▪Easy to access fibers in micro bundles without any tools
- ▪Gel-filled or gel-free micro tubes (6 or 12 fibers)
- ▪At least 2 parallel FRP as strength members (4 FRP optional)
- ▪HDPE outer sheath (LSZH for indoor riser)
- ▪Aramid yarn for ADSS (FASA) variant
- ▪Good water penetration and environmental performance
- ▪In accordance with IEC, ITU and EIA standards
Applications
- ▪Duct backbone (DiC type)
- ▪ADSS aerial (FASA type)
- ▪Indoor risers
- ▪FTTH drop (Outdoor/Indoor type)
Typical Specifications
- Duct (OFC-432DiC(W)-D-S1)
- 432 fibers (M12), Ø 17.4 mm, 191 kg/km
- ADSS FASA (OFC-24-FASA(W)-D-S1)
- 24 fibers, Ø 8.8 mm, 48 kg/km, 1400 N
- Indoor riser (OFC-144-FASA(W)-D-S3)
- 48 fibers, Ø 11.5 mm, LSZH sheath
- Outdoor/Indoor drop
- 1/2/4 fibers G.657A2, Ø 5.2 mm
