Optical Fiber Cables

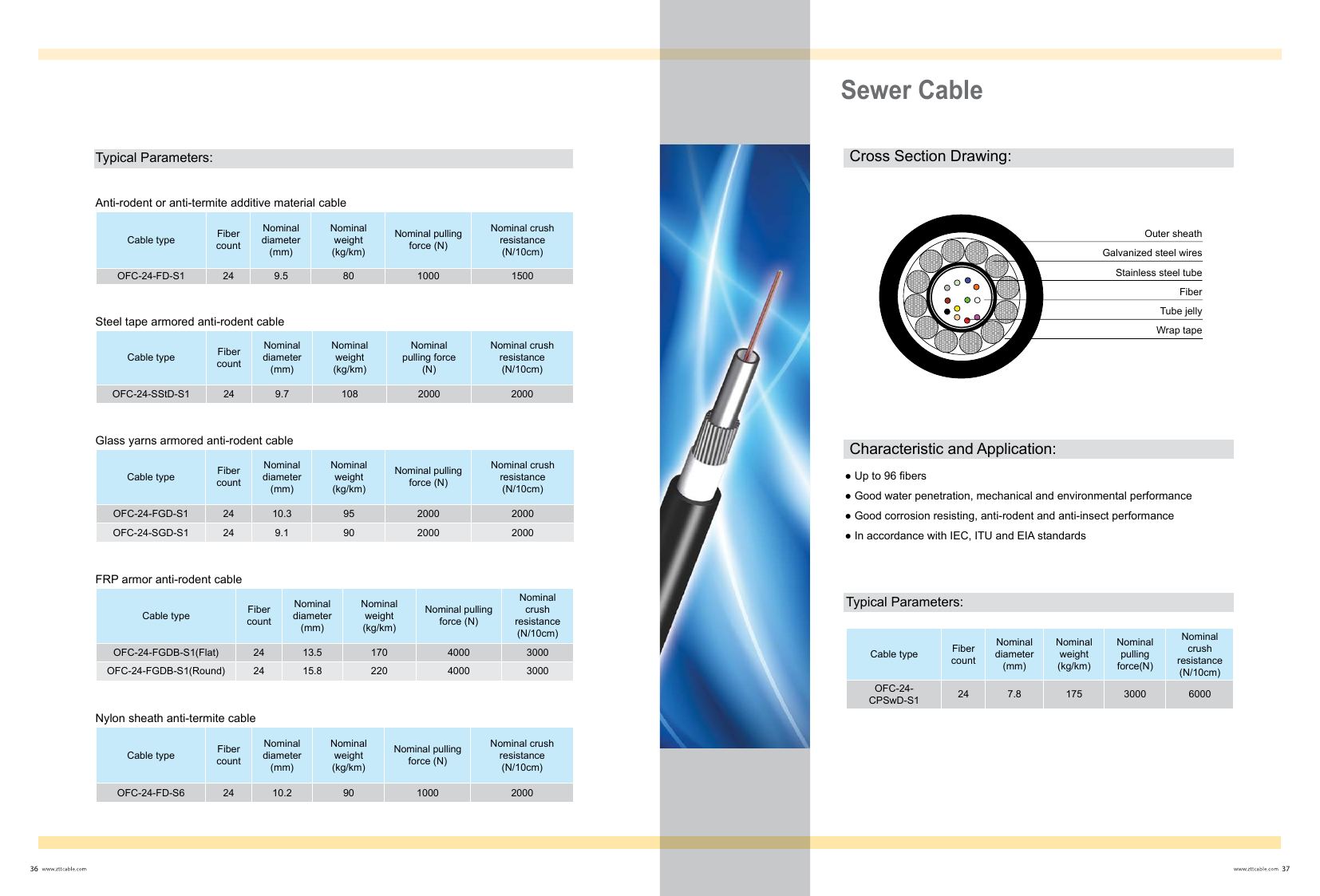

Sewer Cable
Ruggedized stainless-steel-tube optical cable engineered for installation inside sewer and drainage infrastructure. Excellent corrosion, rodent and insect resistance, up to 96 fibers.
Features & Characteristics
- ▪Up to 96 fibers
- ▪Good water penetration, mechanical and environmental performance
- ▪Good corrosion resistance, anti-rodent and anti-insect performance
- ▪Stainless steel tube construction
- ▪In accordance with IEC, ITU and EIA standards
Applications
- ▪Fiber routing inside sewer and drainage networks
Typical Specifications
- Reference type
- OFC-24-CPSwD-S1
- Nominal diameter
- 7.8 mm
- Nominal weight
- 175 kg/km
- Nominal pulling force
- 3000 N
- Crush resistance
- 6000 N/10 cm
